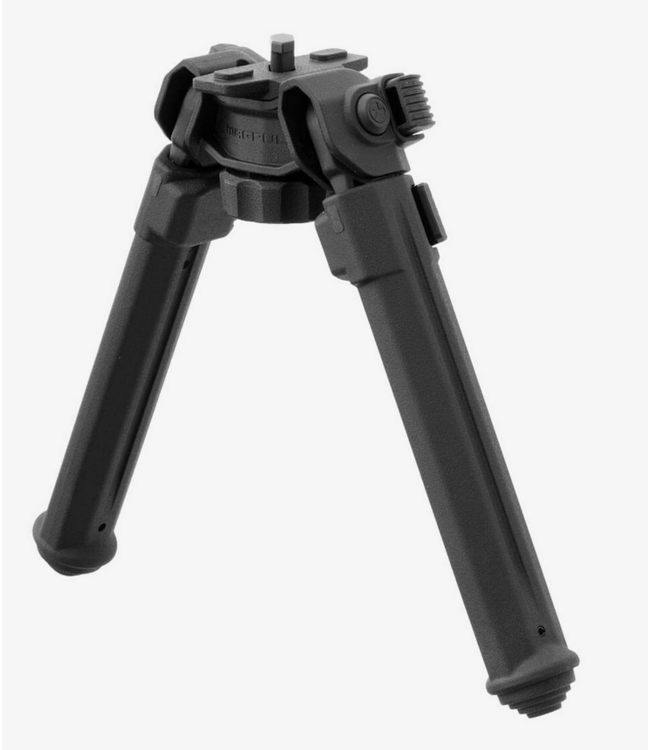

We’ve offered a variety of bipods for quite some time, but none have attached as simply and quickly as the MOE QD Bipod for M-LOK. This new bipod provides shooters a quick-attach and detach function when using guns with an M-LOK hand guard or forend; by speeding up the attachment process via the integral attachment knob, you can get support when firing faster than ever before. To attach the bipod, simply insert the M-LOK stud into the M-LOK slot, rotate the bipod 45° counterclockwise so the stud is perpendicular to the M-LOK slot, and tighten the adjustment knob to securely fasten against the forend. No tools required.
Aside from the quick, simple attachment method, the bipod is almost 40% lighter than some of our existing bipods. The injection-molded construction won’t deform or break under pressure, and it provides a consistent, stable platform from which to shoot. The bipod plate – made from the same injection-molded material as the bipod itself – provides a solid mounting surface and features two (2) additional M-LOK lugs to promote proper alignment after installation, as well as increased stability and durability during recoil. The bipod is also equipped with a low-profile sling stud on the rear to allow sling attachment for easy carry and transportation of the firearm.

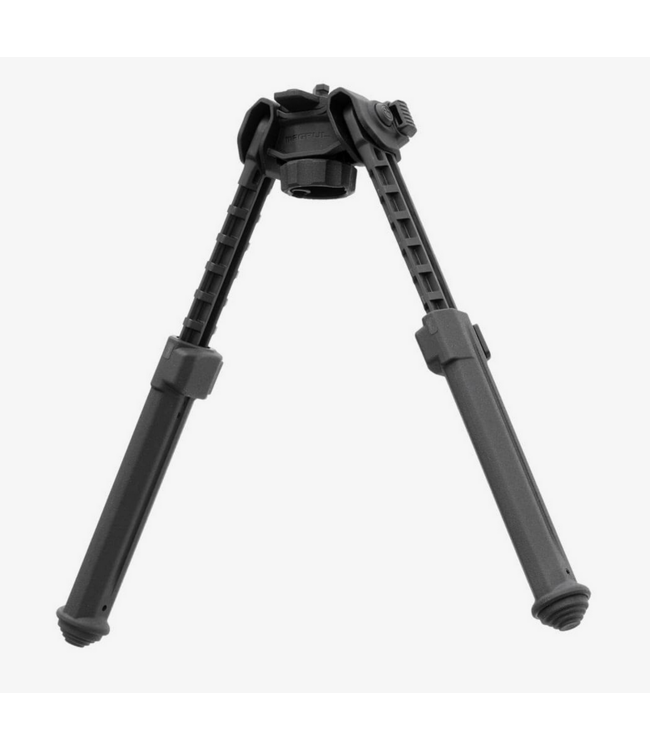

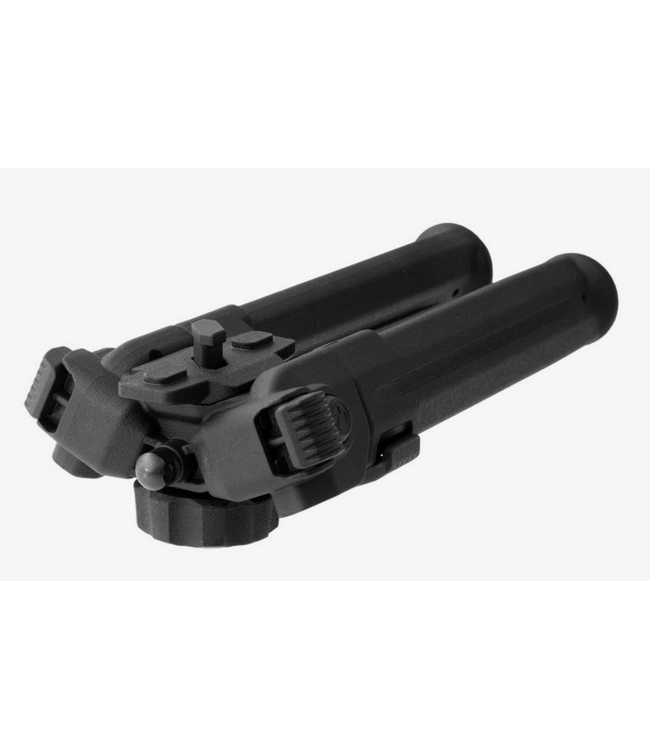

The MOE QD bipod has a low stack height of 1.7” when folded, giving it a streamlined profile when the legs are stowed. When the legs are needed, they deploy and stow with the push of a button, snapping and locking into position. The legs extend from 7ʺ to 10ʺ, and are adjusted easily and independently via a button located at the top of each leg. Within this adjustment range, there are seven (7) ½ʺ spaced locking detents to fine tune the bipod’s deployed height. Additionally, the bipod’s soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch should shooters want to change them to something different (the bipod accepts most Atlas-pattern bipod feet).
Specs:
Attachment: M-LOK Slots
Materials: Polymer, steel
Height (max) 10 in
Pan and Tilt: No
Weight: 9 oz
